Yenuo Undermount Heavy Duty Drawer Slides

【Installation note】 Suitable for 16.5-24 inch drawers. The slides is under mounted,there should be proper mounting clearance leaved under the drawer. Installation clearance under the drawer at least: 2.1 inch（53.8mm). Attention:One set includes a pair of slides without mounting screws included,you can purchase different M4 screws according to your specific installation scene.

【MAXIMUM LOAD CAPACITY: 260lb】The slides is made of high-density and high-strength cold-rolled steel plates with 2mm thickness.it will keep your drawers stable and safe even carrying up to 260 lb heavy weight items,which take 800,000 times of push-pull tests full loaded without damage.The service life of our slide rails is up to 30 years at least.

【3-fold full extension】 Slides length: 16 inch(400 mm)-Fully extended length:35" (900 mm) .The full extension length is designed to be more than twice of the slides closed length on purpose ,which leave enough space for you to screw in the staircase during installation; And because of the slides' full extension function, the drawer can be pulled out completely, which allows for the entire drawer's storage to be accessed easily.

【Anti-rust & Smooth work】The anti-rust ability and oxidation resistance of our slides is superior to the others because of the special electrophoretic coating surface treatment; Industrial grade solid steel ball inside,which not only minimize frictional resistance to keep the sliding more smooth and quiet,and also effectively increase the load-carrying capacity of slides.

【Application】 It apply to the cupboard under stairs and any staircase cabinet, which help achieve the staircase storage space miracle.Also other heavy drawers that demanding strong bearing capacity in wine cabinet,wardrobe and so on. YENUO Hardware is a professional manufacturer specializing in the design and production of mid-to-high slide rails and hinges.Any quality or installing problem please feel free to .

Product Description Features Soft close,Hidden, artistic and elegant Not easy to rust Push to Open Strong carrying capacity Strong carrying capacity With lock,Ultra Strong Load Capacity Type Home Home Home Heavy duty Heavy duty Heavy duty Load-bearing 77lb 100lb 100lb 150lb 250lb 485lb Material Cold rolled steel Stainless steel Cold rolled steel Cold rolled steel Cold rolled steel Cold rolled steel Installation clearance 7mm*2 12.5mm*2 12.5mm*2 12.7mm*2 19mm*2 19mm*2

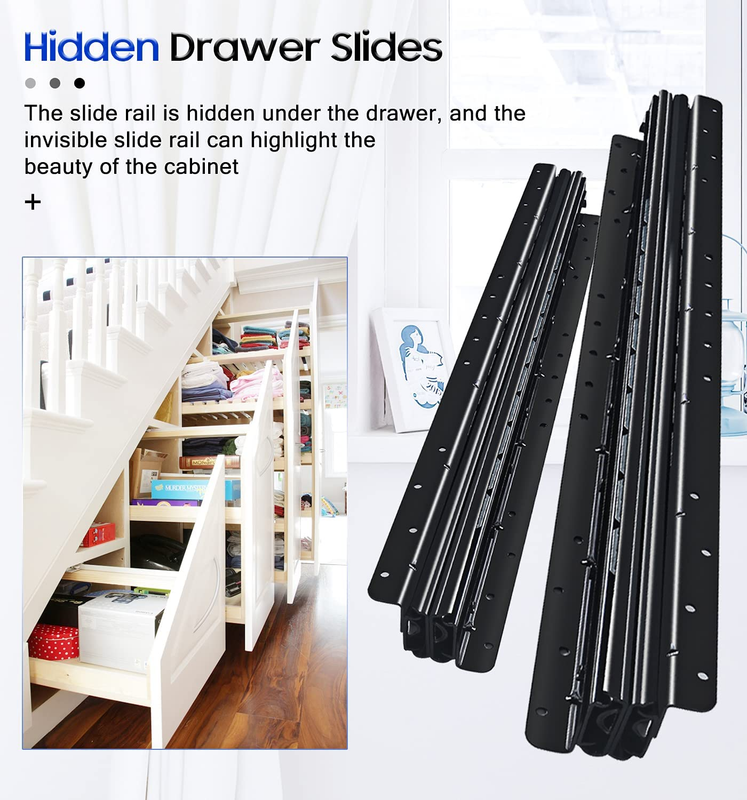

YENUO Hidden under mounting drawer slide.
Suitable for all kinds of stair cabinets, expand storage and save space.
Specifications
Length dimension: 400/600/800/1000mm
Installation clearance:> 53.8mm
Load capacity: 260lb/120kg (per pair)
Installation method: under mounting
Function: expand storage, save space
Packaging: 1 pair, scratch-resistant packaging
Open mode: full stretch
Shoe cabinet storage
Item storage
Note
The reserved bottom installation clearance is more than 53.8mm
Precautions before installation
1. The height h is not limited.
2. The maximum bearing capacity of the track is 120kg, and the width W of stair cabinet is recommended to be between 30-60cm.
3. The outer frame space must be longer than the track length D
(remember to add the thickness occupied by door panel and back panel).
4. There can be no vertical plate support in the middle of the cabinet, otherwise it will affect the normal installation of the cabinet. Please check the picture on the homepage for details.
